2025 McHale R5 Round Bale Handler

Name: 2025 McHale R5 Round Bale Handler
Brand: McHale
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

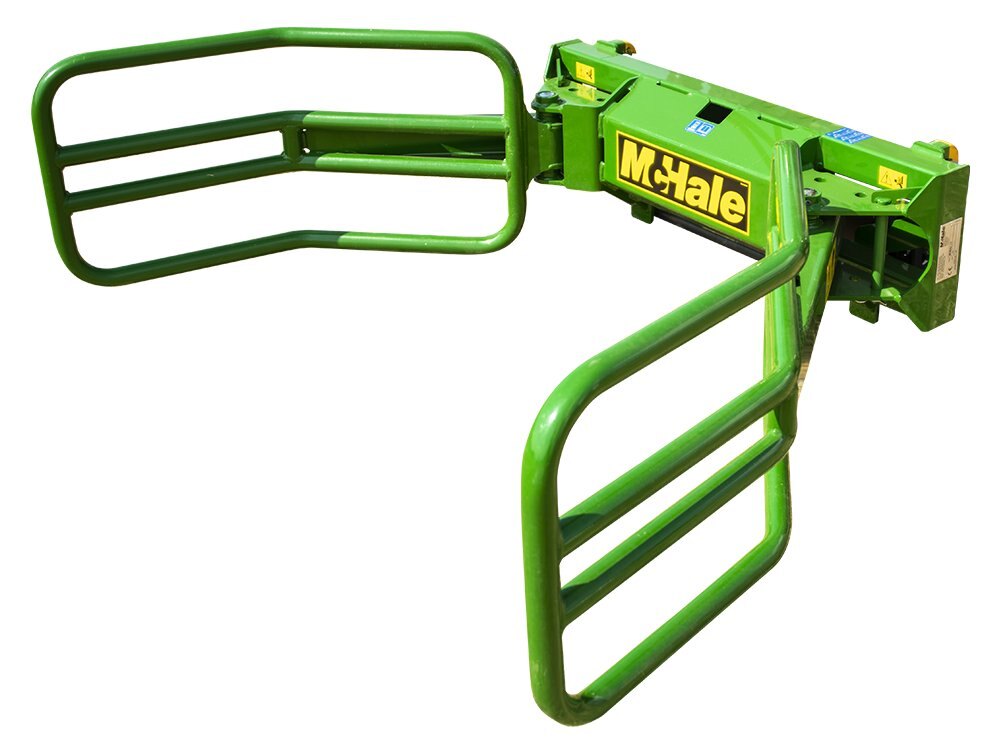

R5 Round Bale Handler

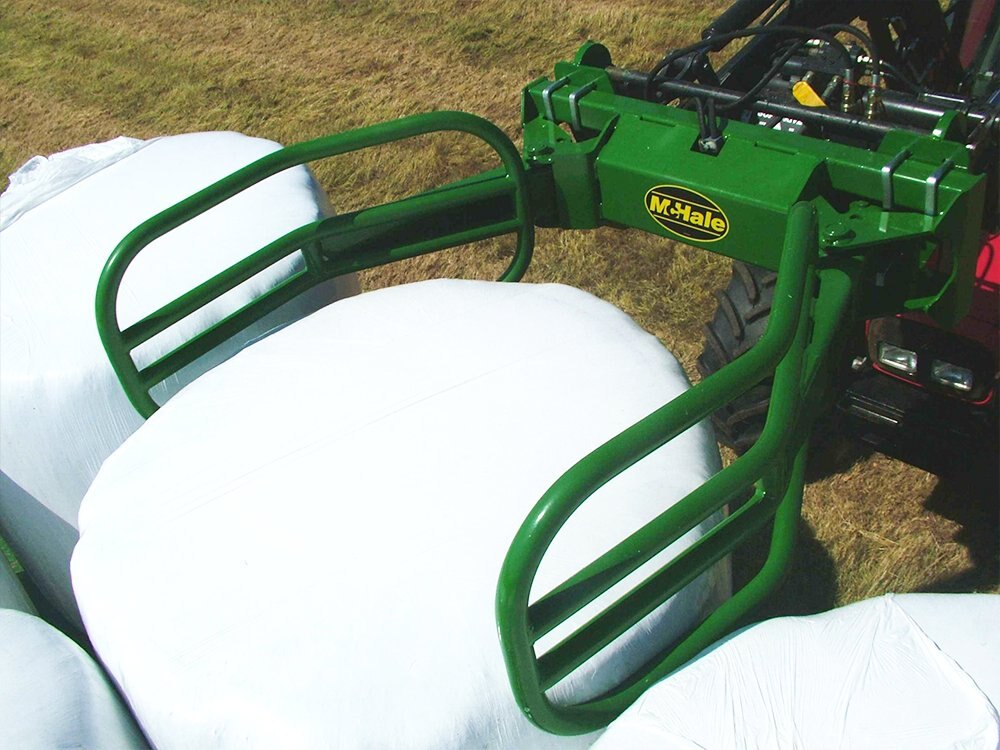

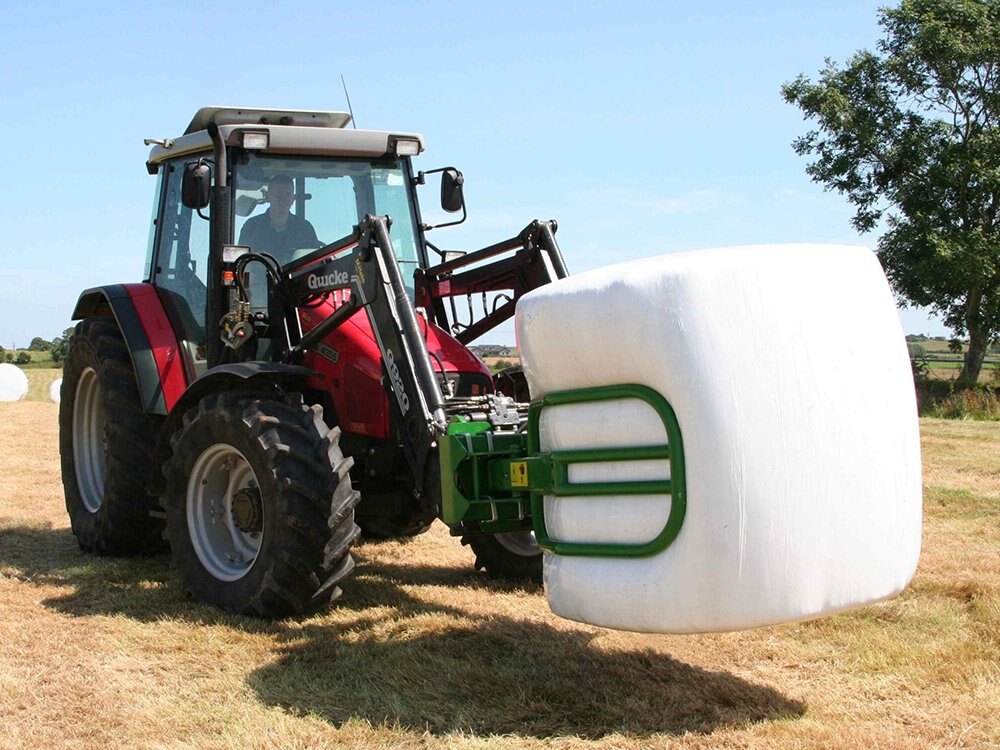

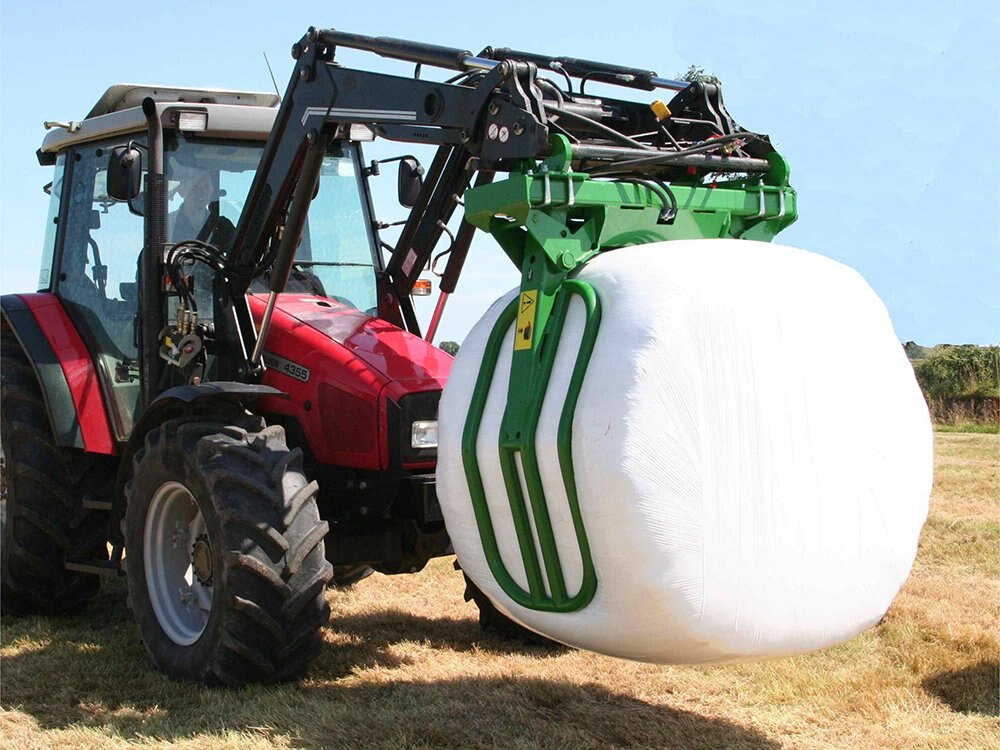

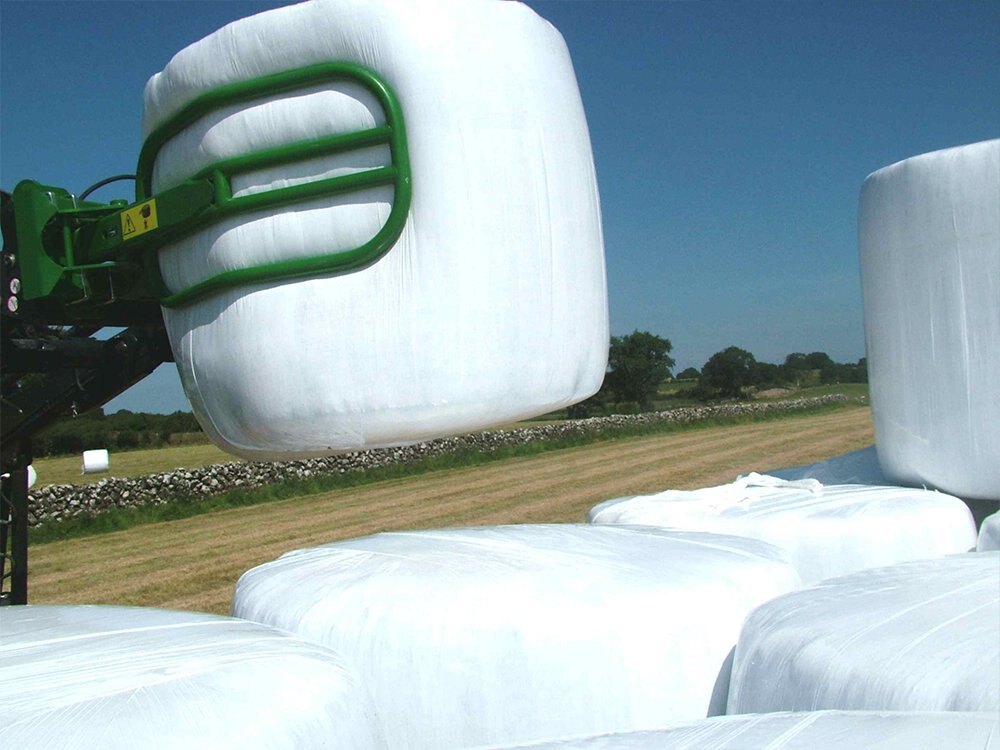

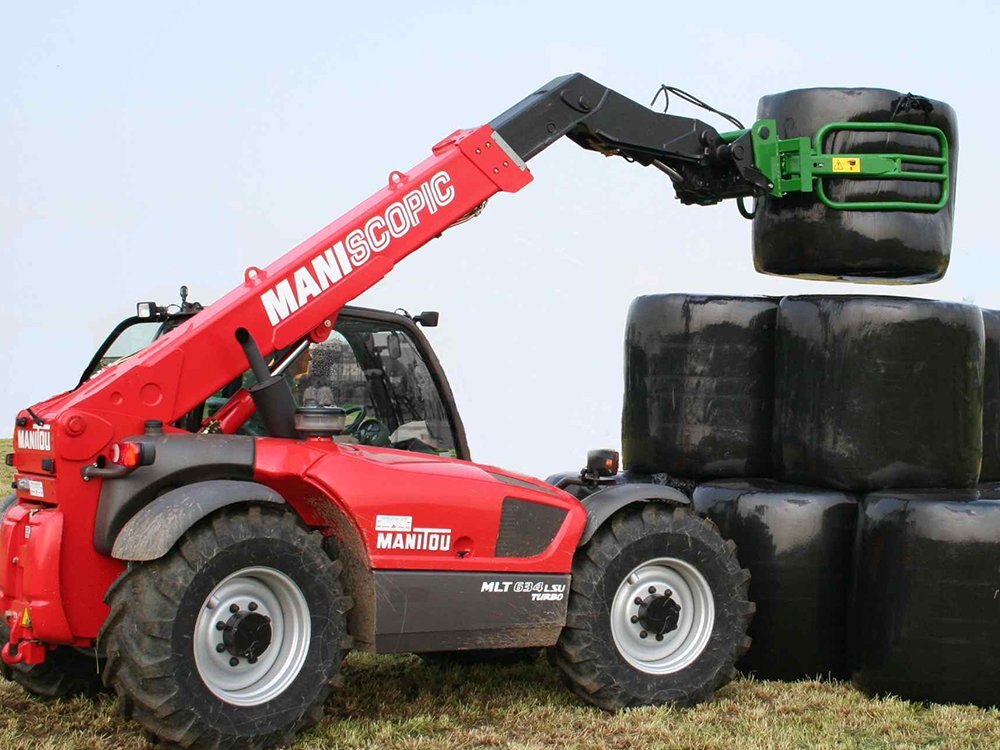

The McHale R5 round bale handler is ideal for collecting round bales, which have been tipped on their ends in the field. The McHale R5 Round Bale Handler can also be used to collect round bales, which have been left normally after a baler and rotate them through 90 degrees and stack them on their ends so that they hold their shape better.

R5 – Round Bale Handler

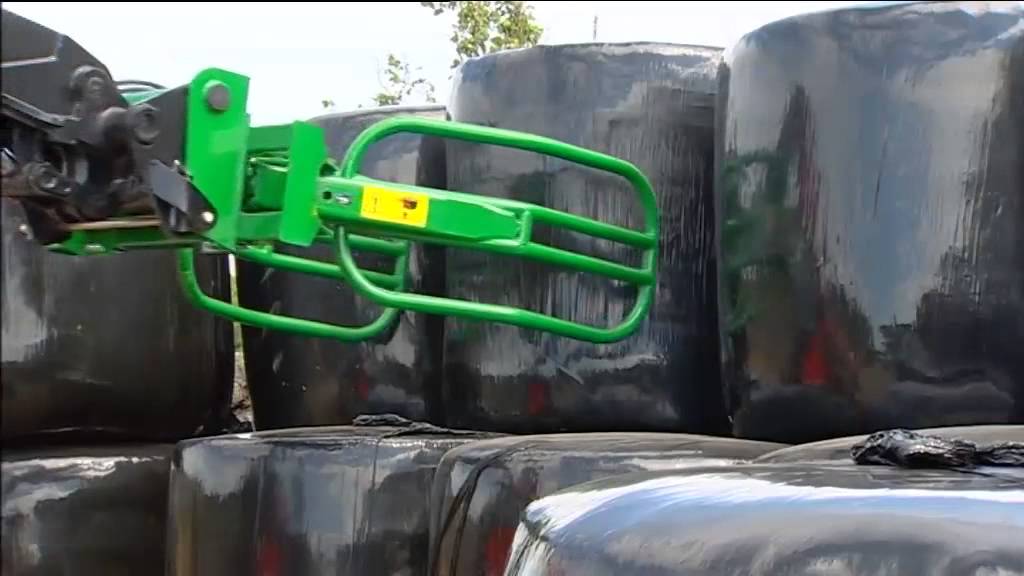

Watch the video for the McHale R5 round bale handler which is ideal for collecting and stacking round bales that have been tipped on their ends in the field.

Specifications

Model

Round Bale Handler

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

McHale

technical specification

Weight	160 kg / 352 lbs
Height	0.59 m / 2’0”
Length (overall)	1.42 m / 4’7”
Length of Arms	1.2 m / 3’11”
Max Width (Fully Open)	1.75 m / 5’9”
Open Distance between the Arms	1.65 m / 5’5”
Closed Distance between the Arms	0.67 m / 2’3” (Closed)
Lifting Capacity	1100 kg / 2425 lbs
Hydraulic Requirements	One Double Acting Service
Check Valve & Pipes	Standard
Minimum Hydraulic Pressure	150 bar / 2250 lbs/sq. in
