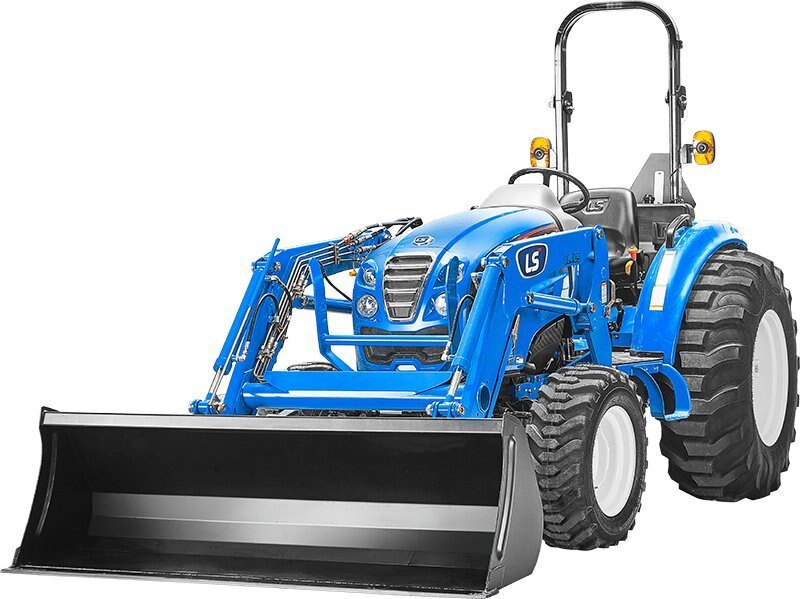

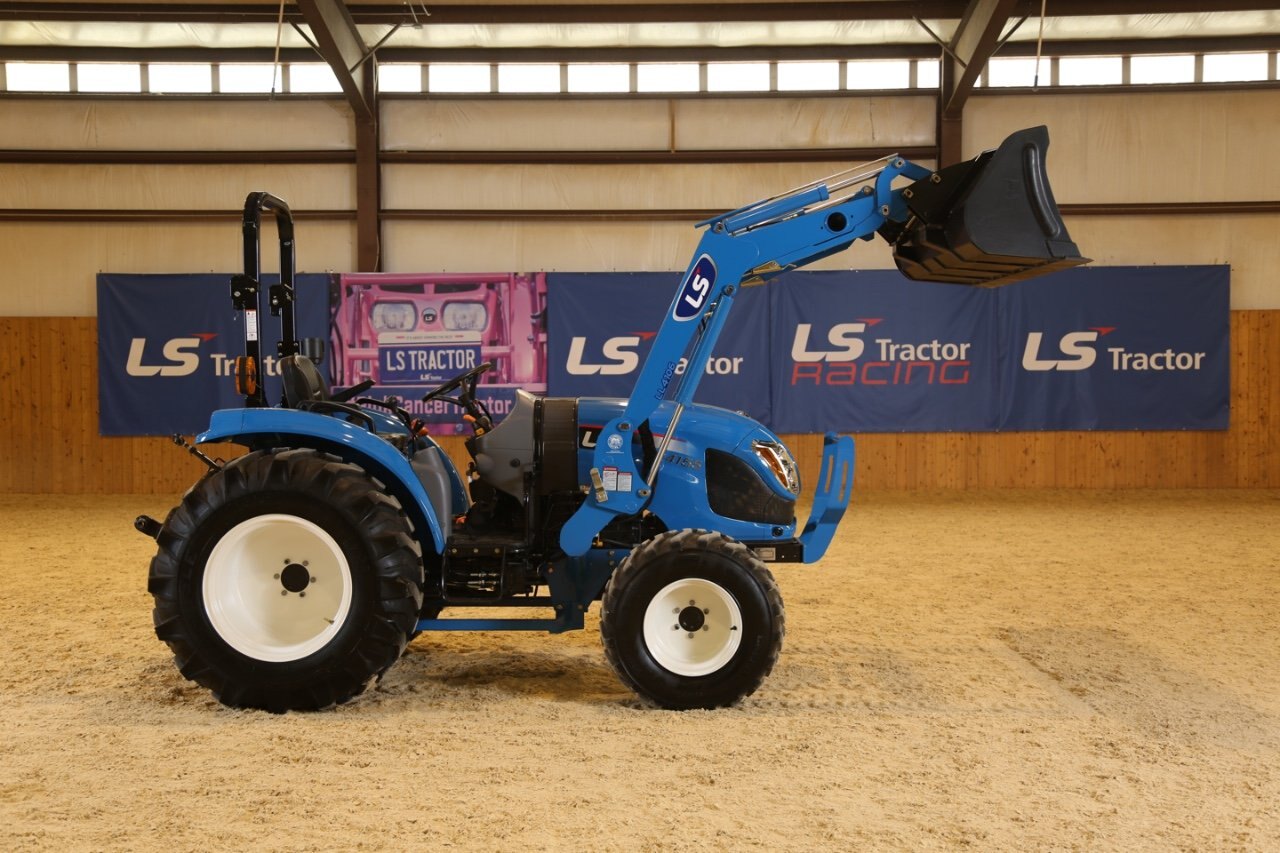

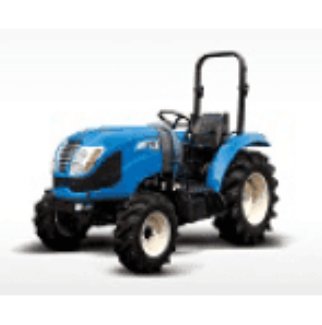

LS Tractor MT335H – 35HP

  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
  • LS Tractor MT335H – 35HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Compact

The MT3 series compact tractor comes in several configurations, one of these is the popular cab configuration.  This feature along with high-performance and quality design makes this LS tractor series ready for a variety of applications.

Specifications
Model
MT335H – 35HP
Category Name
Tractors
Year
2024
Sale Type
New
Manufacturer
LS Tractor
PTO HP
32.0 HP
ENGINE HP
40.0 HP
HITCH LIFT
1,808 lbs.
LOADER LIFT CAPACITY
2,185 lbs.
features

4WD (FRONT WHEEL MECHANICAL ASSIST)

Go from 2WD to a 4WD with a simple move of a lever.LS Tractor MT335H – 35HP

INDEPENDENT PTO

Easiest PTO to operate that can be turned on or off with a switch.LS Tractor MT335H – 35HP

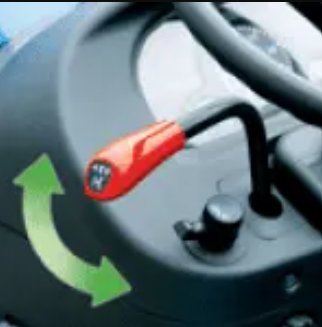

STANDARD 12×12 SYNCHRO SHUTTLE

Change gears without having to stop. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.  LS Tractor MT335H – 35HP

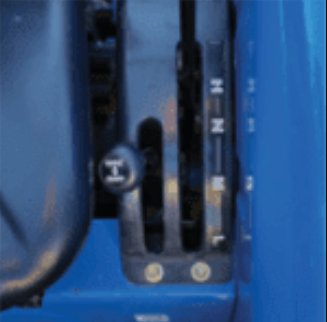

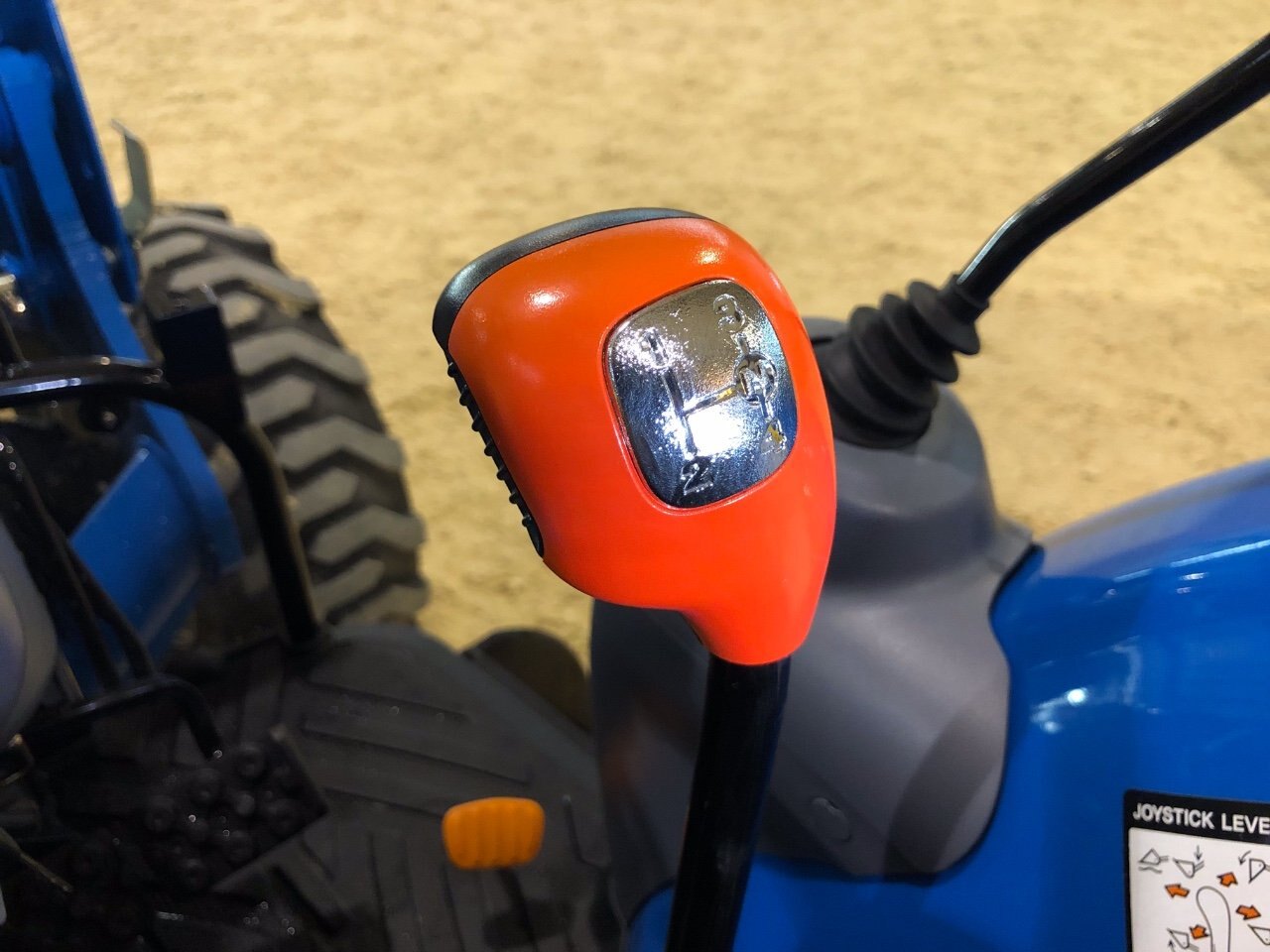

SIDE MOUNTED MAIN GEAR LEVER

Maximizes space and makes getting on and off tractor easier than straddle type like other brands.   LS Tractor MT335H – 35HP

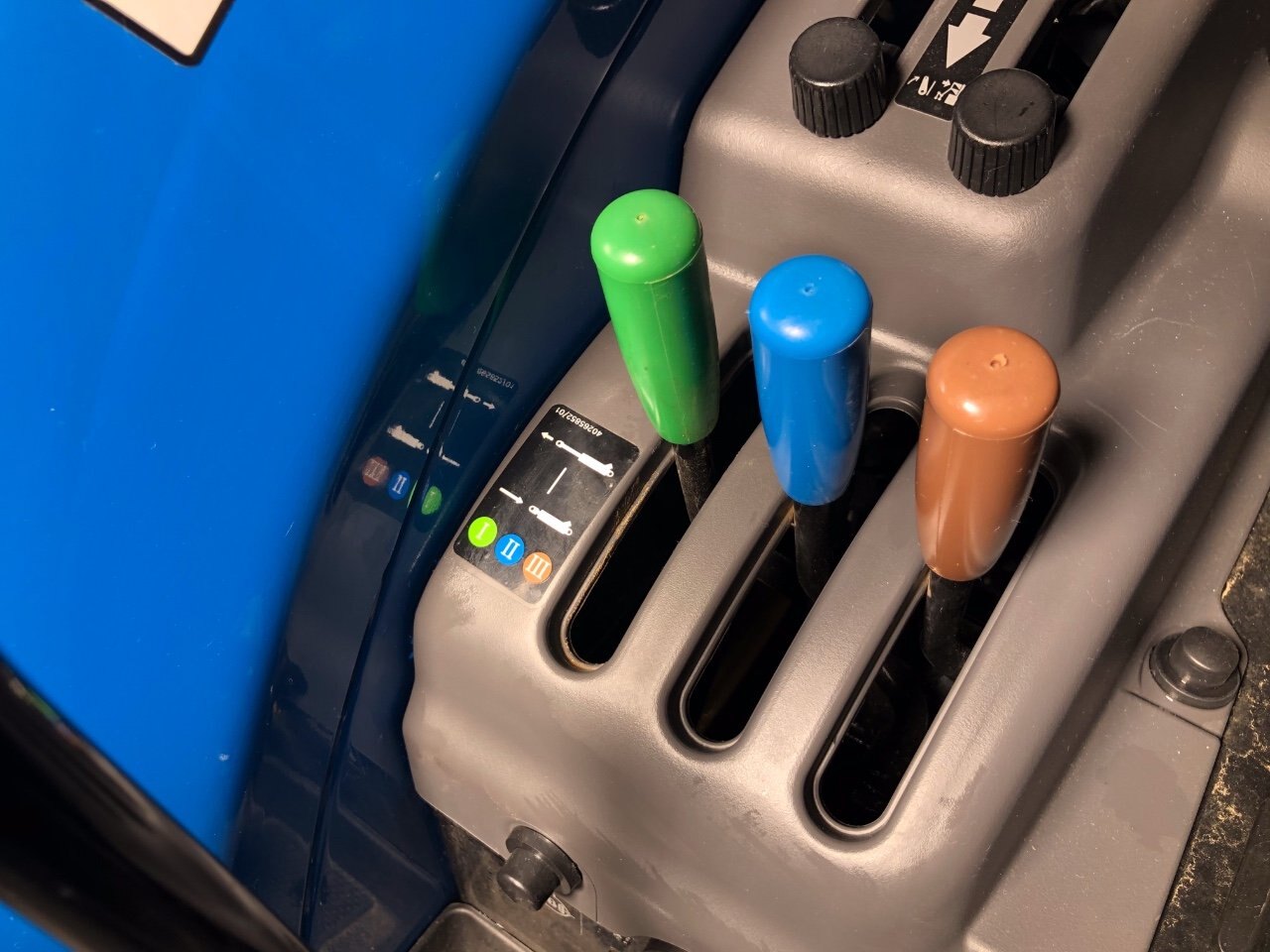

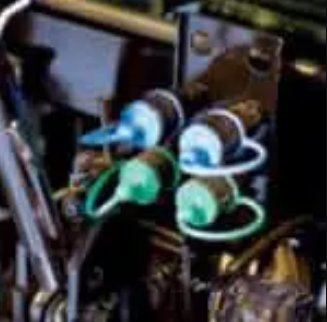

STANDARD 2 SETS OF REMOTE VALVES WITH DETENTLS Tractor MT335H – 35HP

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.



EXTENDABLE LOWER LINKS

Allows easier attachment of a wide variety of Category 1 implements with a 1,808 lb lift capacity.LS Tractor MT335H – 35HP

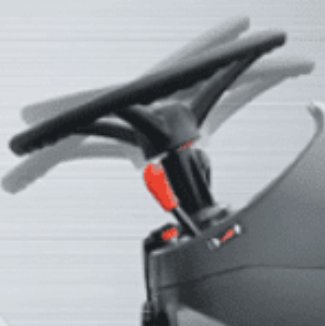

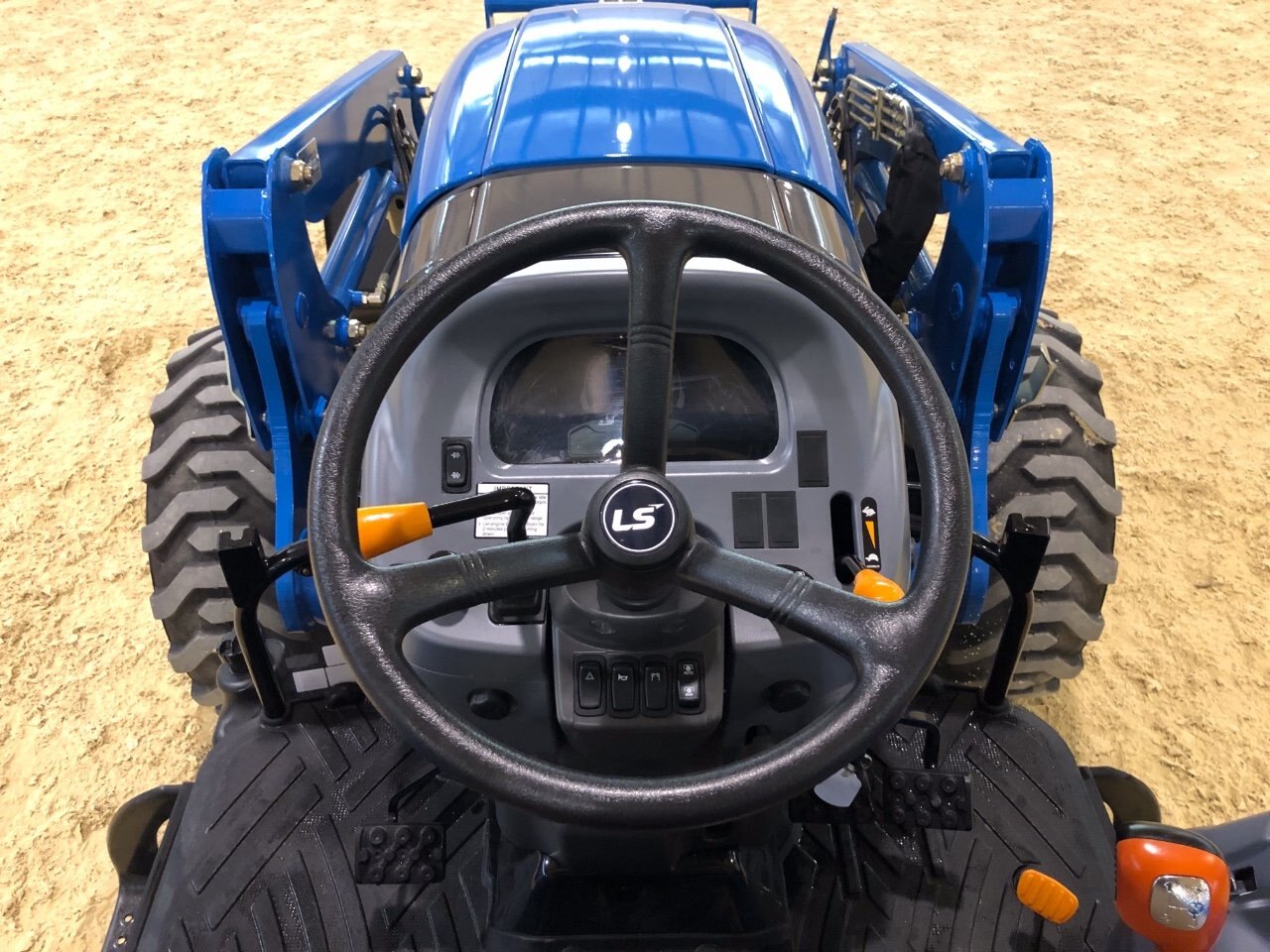

STANDARD TILT & POWER STEERING

Makes turning easier, improves control and reduces fatigue.LS Tractor MT335H – 35HP

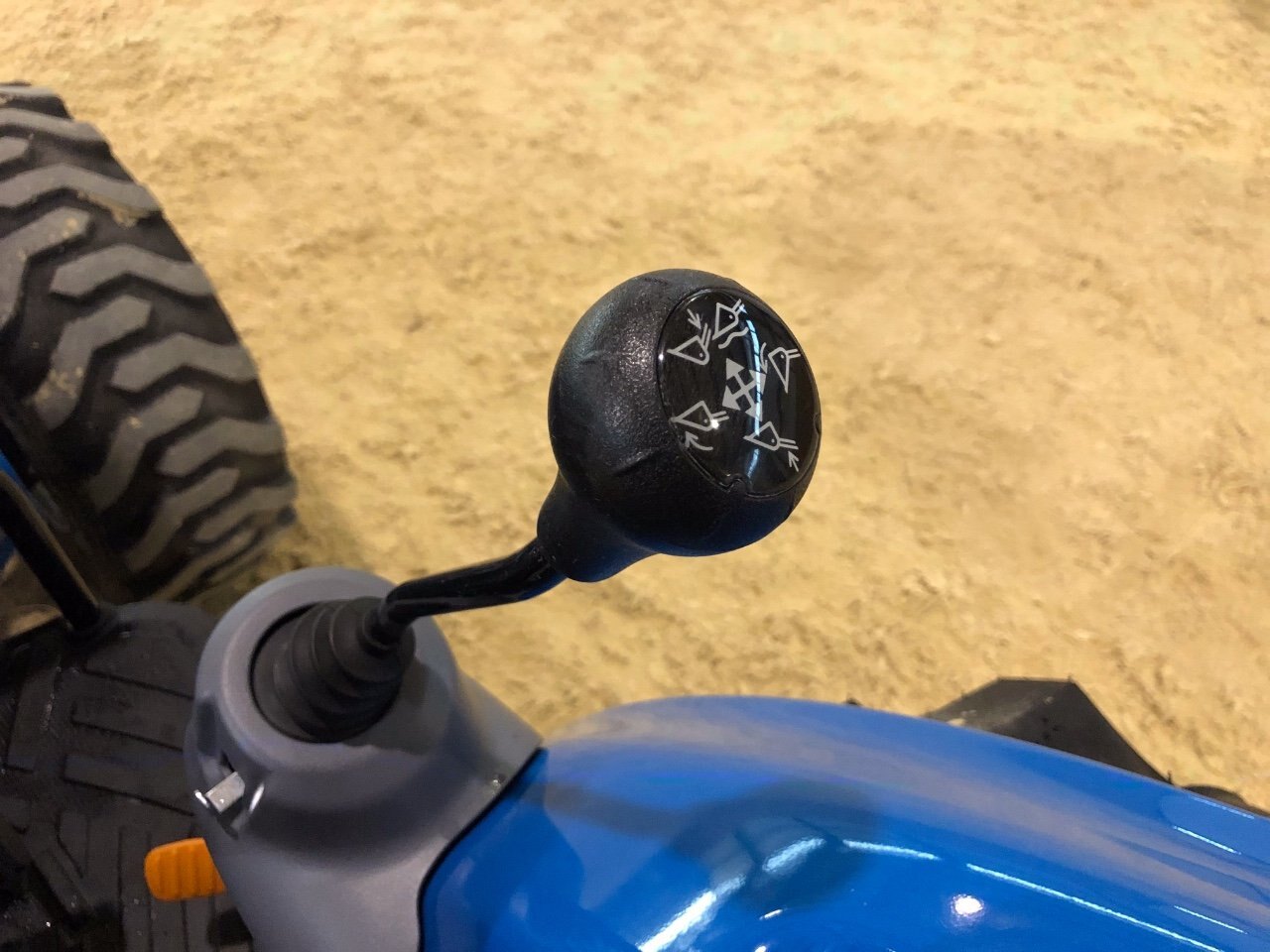

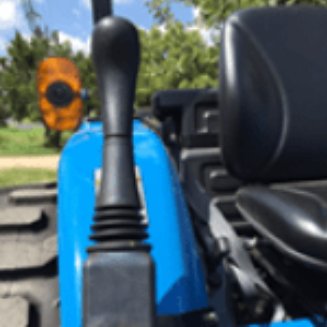

FENDER MOUNTED JOYSTICK FOR FRONT END LOADER/H3>
EASILY ACCESSIBLE FOR MAXIMUM COMFORT AND CONVENIENCE.
LS Tractor MT335H – 35HP

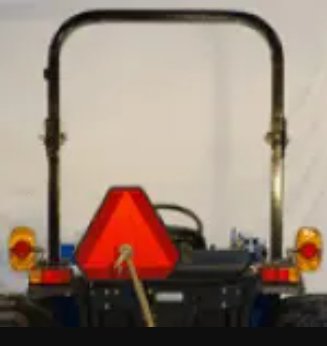

STANDARD FOLDABLE ROPS

Allows Storage in low clearance buildings or sheds.LS Tractor MT335H – 35HP

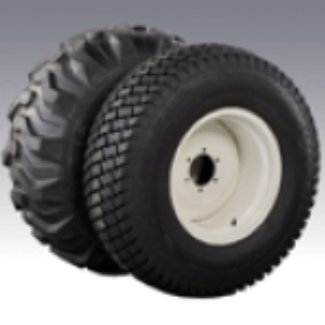

YOUR CHOICE OF TIRES AT NO ADDITIONAL COST*

Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.LS Tractor MT335H – 35HP

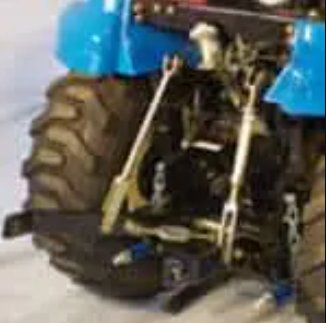

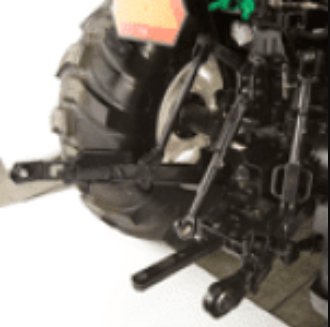

3-POINT HITCH

Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.LS Tractor MT335H – 35HP

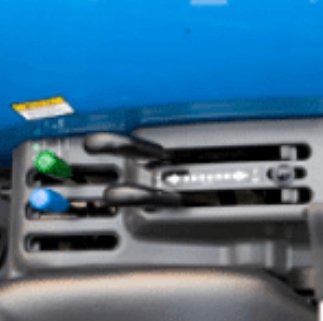

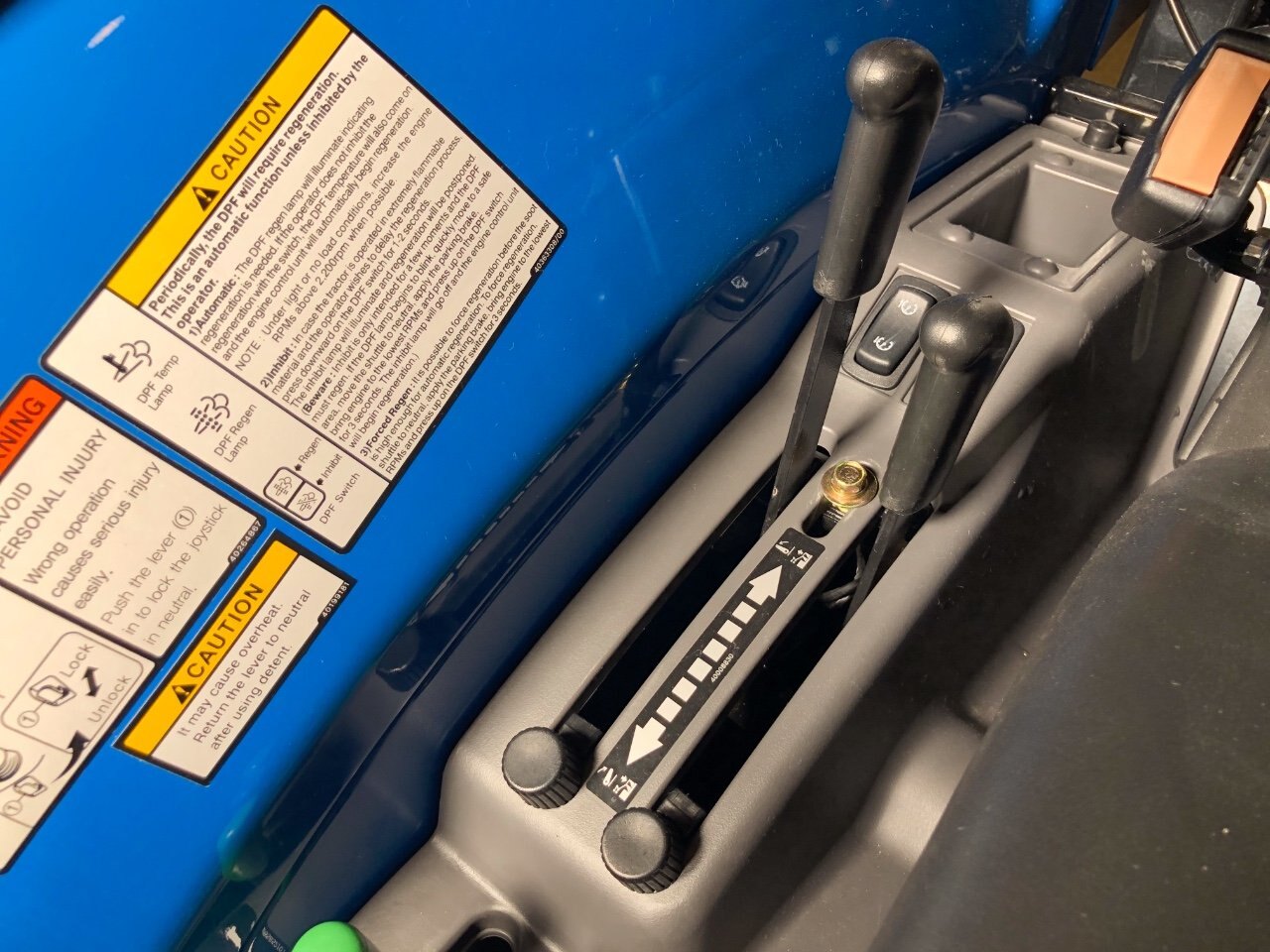

STANDARD HYDRAULIC POSITION AND DRAFT CONTROL

Easily accessible for maximum comfort and convenience.LS Tractor MT335H – 35HP

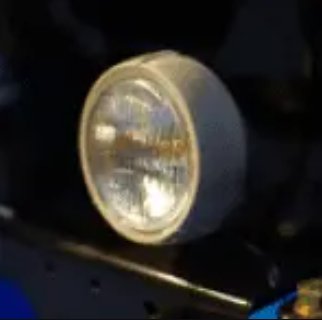

STANDARD REAR WORK LIGHT

Adjustable light to improve visibility where you need it.LS Tractor MT335H – 35HP

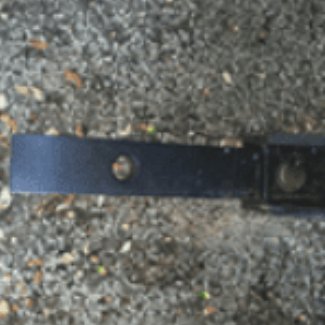

STANDARD DRAW BAR

Increases the usefulness of the tractor without the additional optional cost.LS Tractor MT335H – 35HP

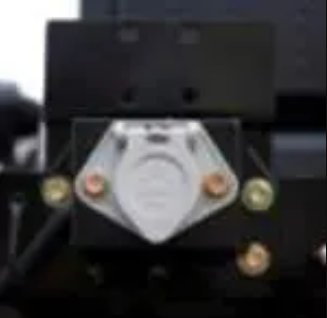

7 PIN CONNECTOR

Provides electrical Power for implements when needed.LS Tractor MT335H – 35HP

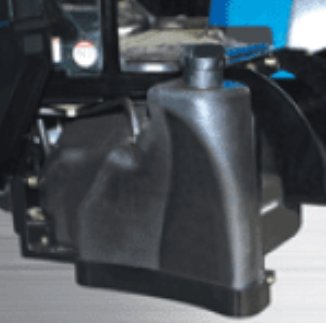

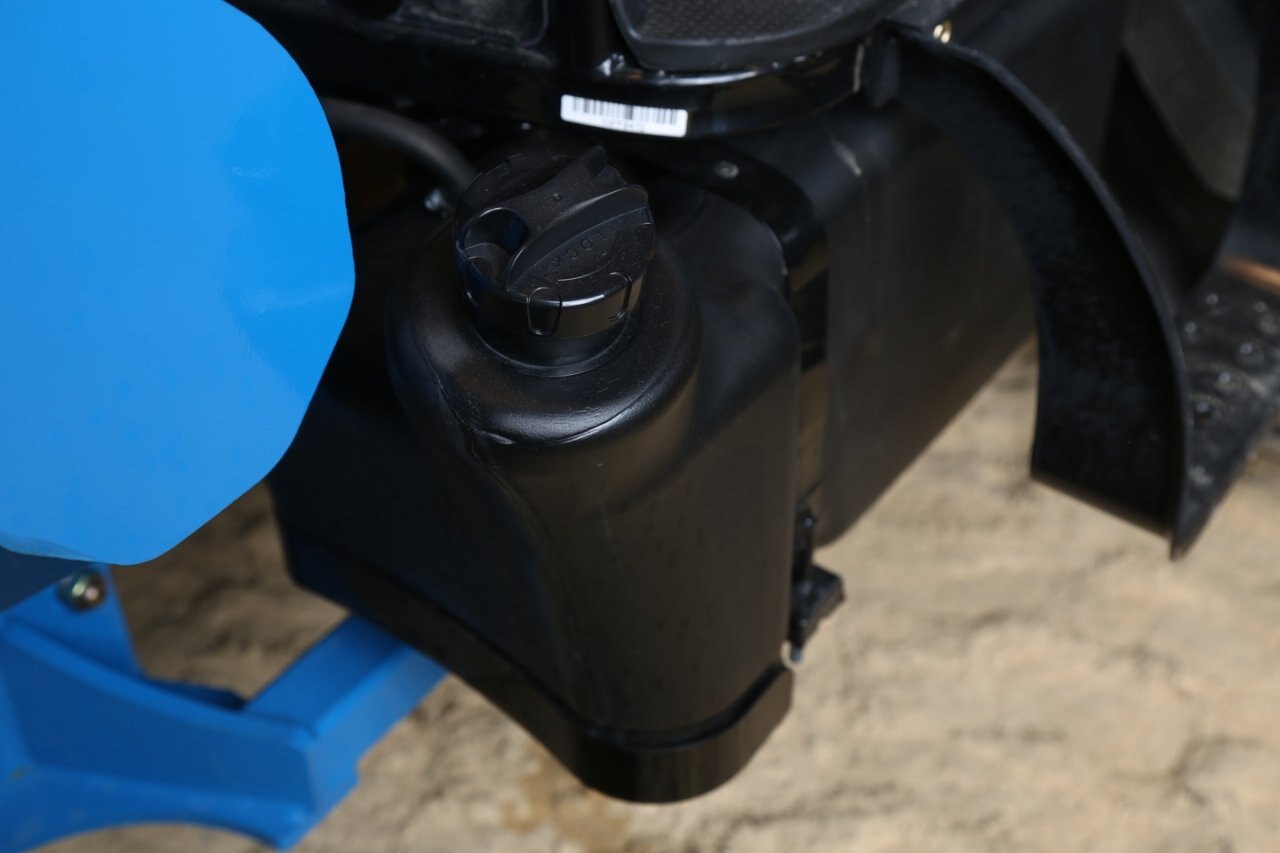

LARGE FUEL TANK

Provides long operation times between fill-ups.LS Tractor MT335H – 35HP

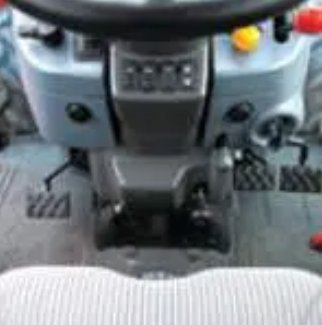

FLAT PLATFORM AND RUBBER MAT

Roomy, spacious and comfortable.LS Tractor MT335H – 35HP

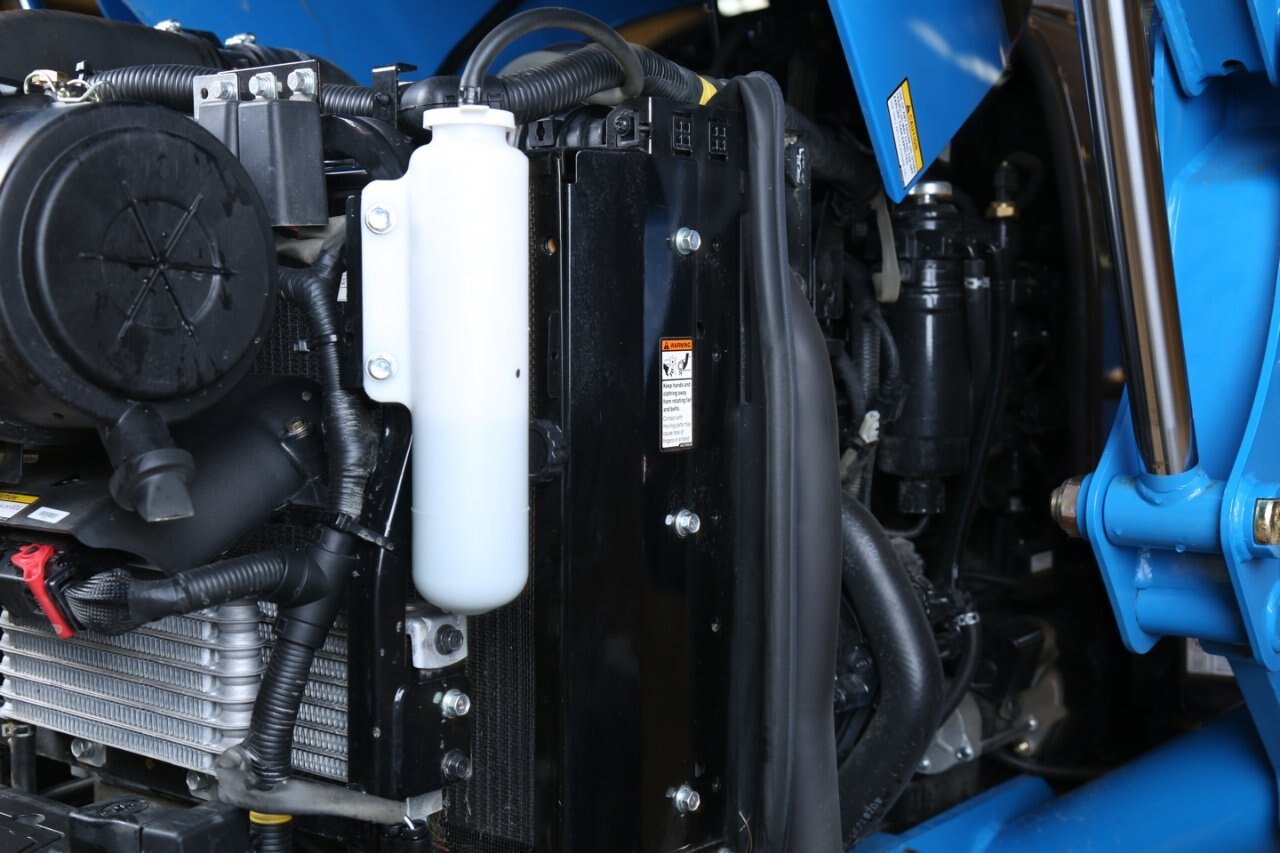

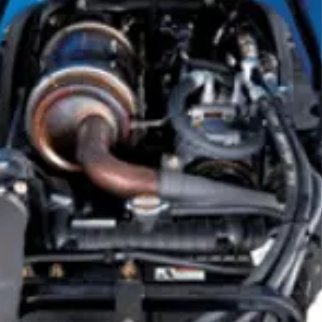

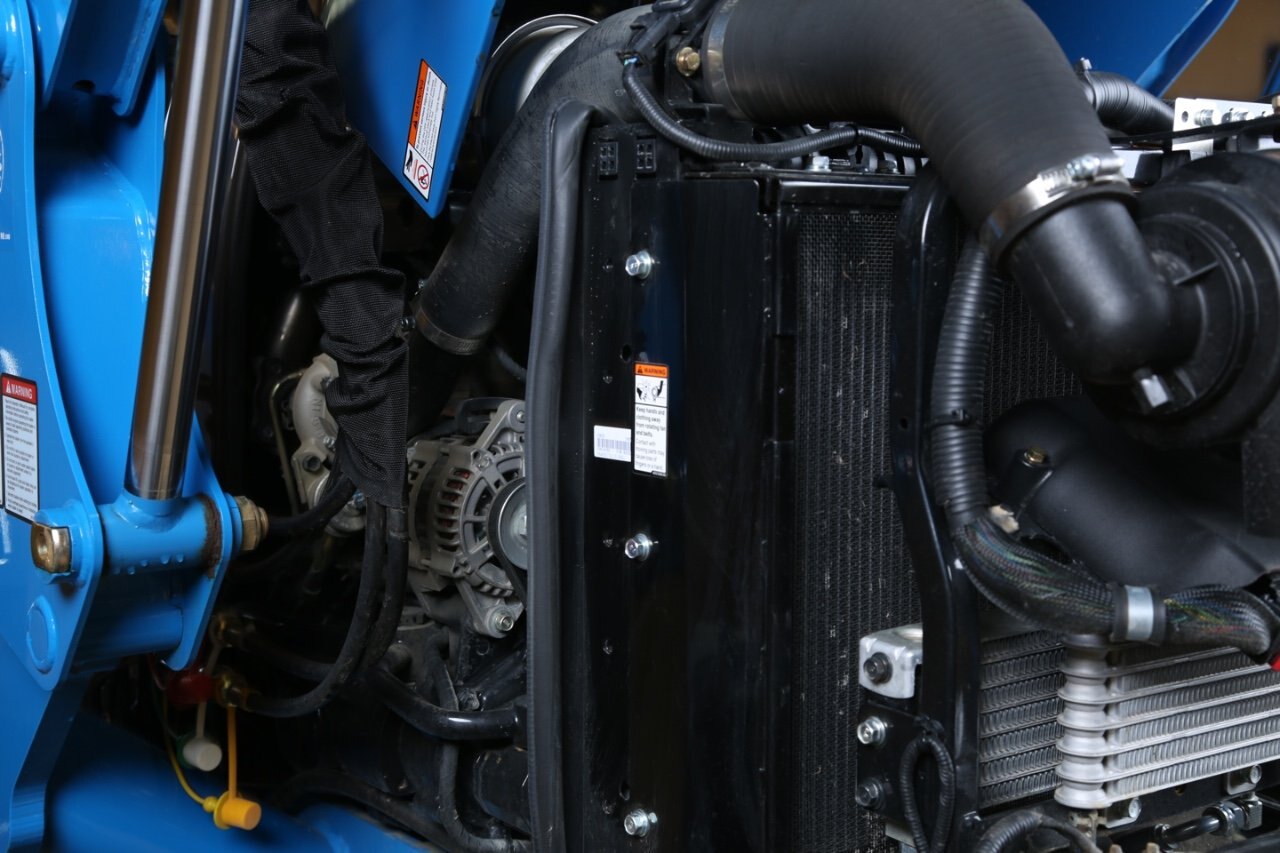

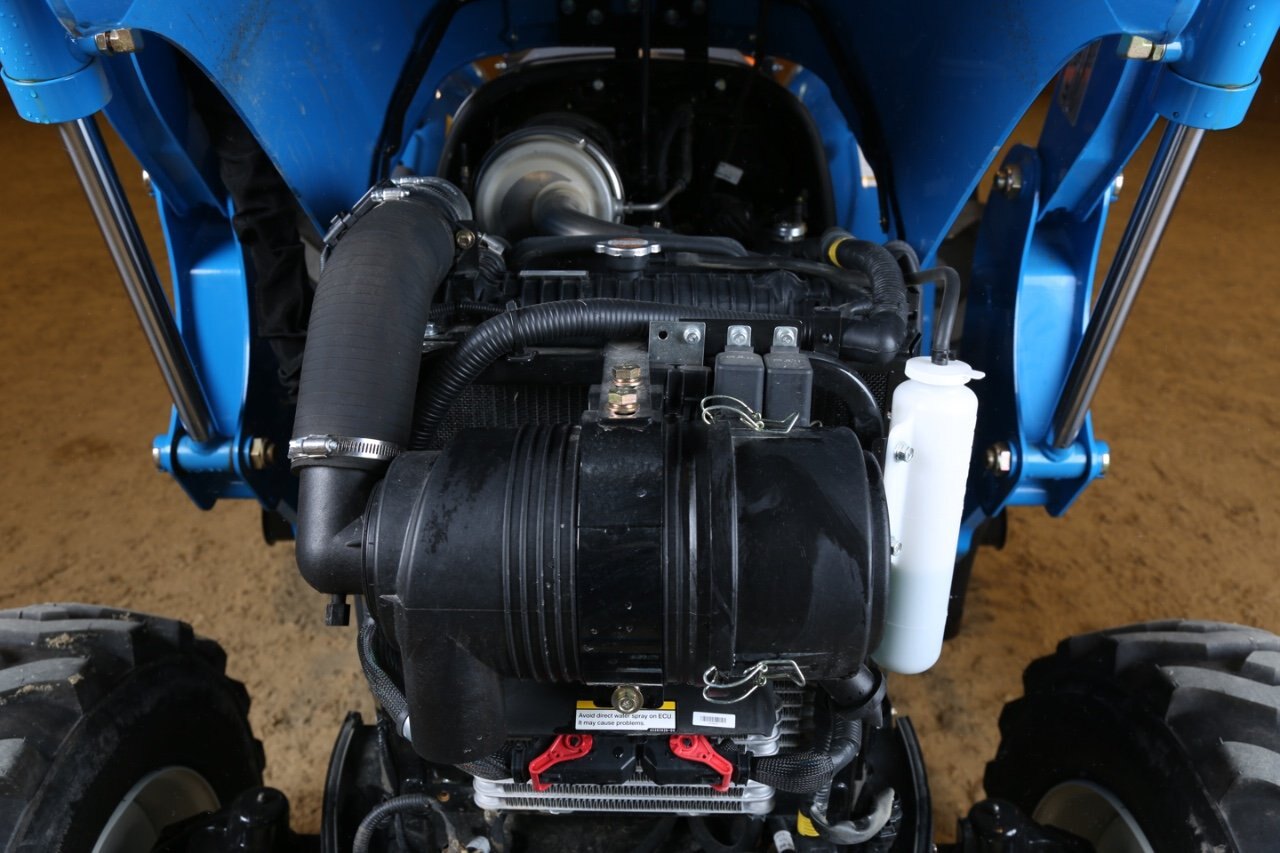

LS CRDI TIER 4 ENGINE

Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather. Includes engine speed cruise control.LS Tractor MT335H – 35HP

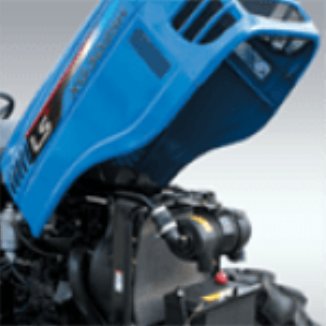

EASY OPEN ONE-PIECE STEEL HOOD

Provides accessibility for easy maintenance.LS Tractor MT335H – 35HP

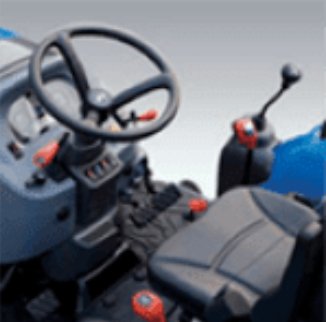

MODERN ERGONOMIC DESIGN

Ergonomically designed for comfort.LS Tractor MT335H – 35HP

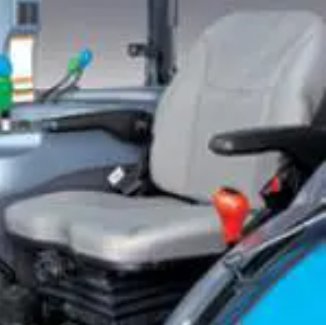

DELUXE ADJUSTABLE SEAT WITH ARM RESTS AND RETRACTABLE SEAT BELT

Keeps you in a comfortable and safe position for maximum control.LS Tractor MT335H – 35HP
engine
Type
Vertical Water-Cooled 4Cycle Diesel Engine
PTO HP
28
Model (Tier 4)
L3C19-T
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu. In.)
114.7
Fuel Tank Capacity (gal)
10.6
drive train
Brakes
Wet, Multi-Disc
Speeds
12F / 12R
Steering
Hydrostatic Power Steering
Transmission
Synchro Shuttle/HST
pto
Type
Independent
Mid PTO
Field Option (2000 rpm)
Rear RPM
540
hydraulic system
Total Flow (gpm)
12.3 / 13.7 (HST)
Lift Control Type
Position / Draft
Steering Pump (gpm)
4.1 / 5.5 (HST)
Category, 3 Pt Hitch
CAT 1
Implement Pump (gpm)
8.2
Hitch Lift Capacity (lb)
1,808
dimension
Wheelbase (in.)
66
Overall Length Frame To Link (in.)
124.3
Total Weight Without Ballast (lbs)
3,285
Min. Overall Width With Ag Tires (in.)
60
Height To Top Of ROPS With Ag Tires (in.)
93
tire size
Ag Front/Rear
7 – 14 / 11.2 – 24
IND Front / Rear
25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear
25 x 8.5 – 14 / 41 x 14 – 20
options

Mid PTO
Beacon Lamp Kit
Deluxe Stereo System with CD Player, USB
Room Mirror
Rear Wiper
Sun Screen



attachments

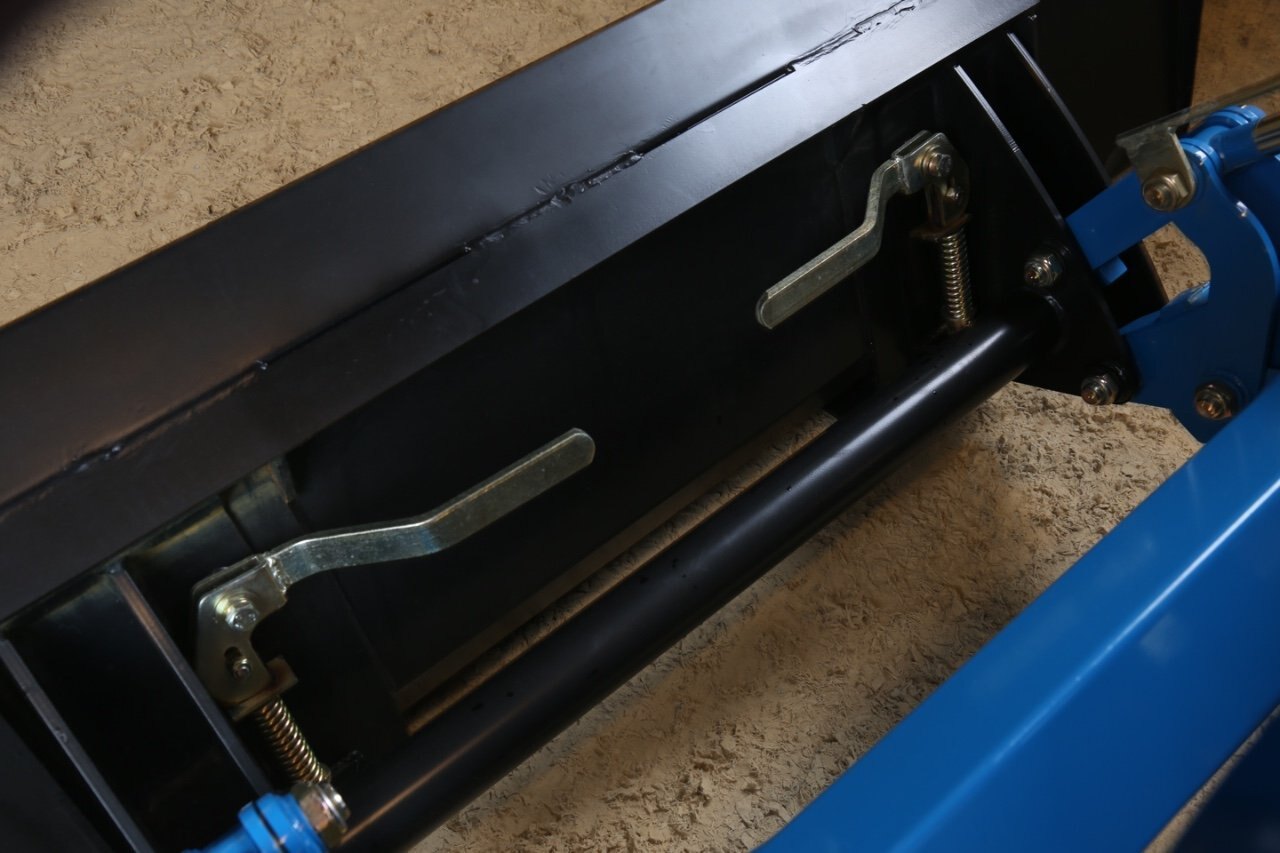

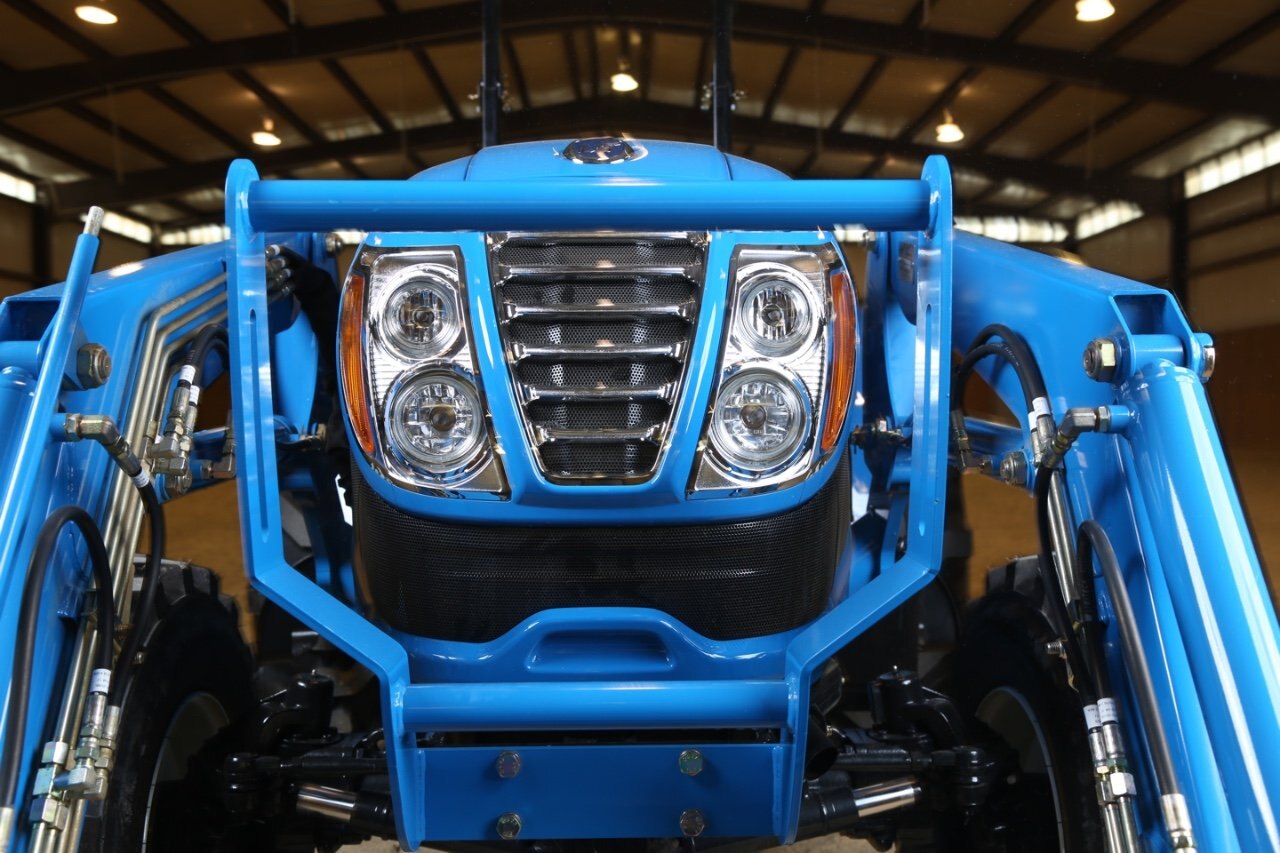

FRONT LOADER – LL3106

  • Bucket Size (in): 66
  • Maximum Lift height (in): 92.7
  • Clearance with Attachment Dump (in): 61.7
  • Reach at Maximum Height (in): 15
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 43
  • Digging Depth (in): 4.9
  • Overall Height in Carry Position (in): 49.1
  • Lift Capacity(@ Pivot pin) (lbs.): 2,178
  • Breakout Force(@ Pivot pin) (lbs.): 3,450

BACKHOE – LB2104

  • Digging Depth (in): 89.8
  • Reach from centerline of swing Pivot (in):125.2
  • Loading Height (in): 72.4
  • Swing Arc (deg.): 180
  • Transport Height (in): 83.5
  • Bucket Rotating (deg.): 180
  • Stabilizer Spread(Down position) (in): 68.7
  • Stabilizer Spread(Up position) (in): 46.5
  • Bucket Digging force (lbs): 2,673
